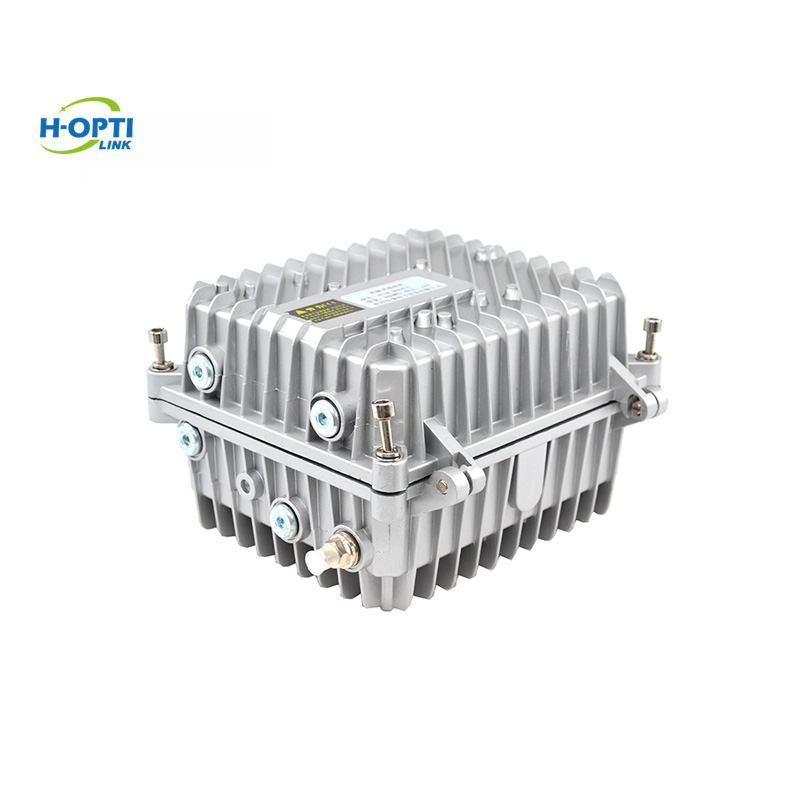

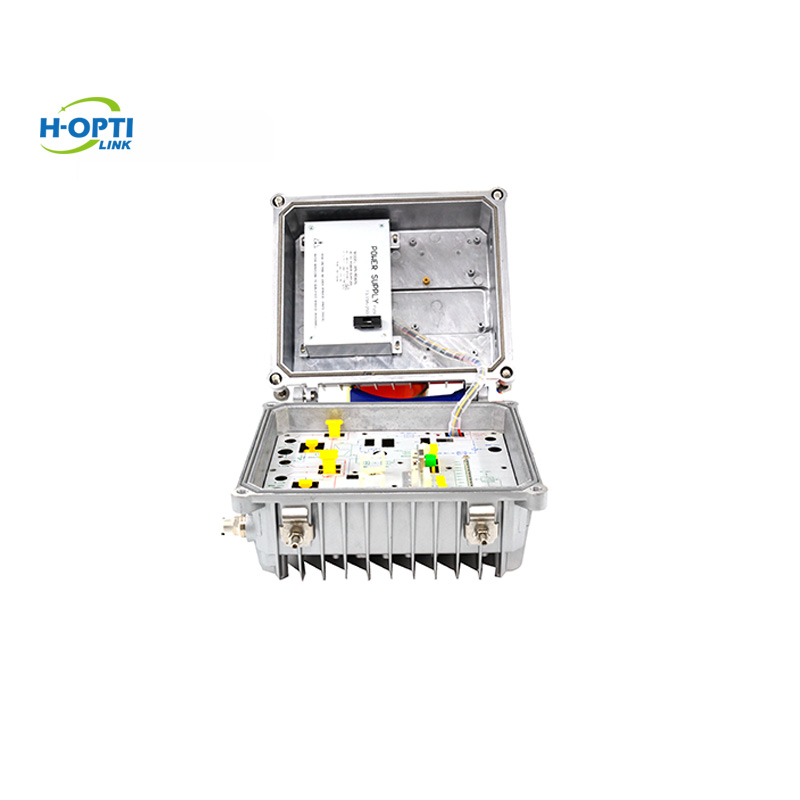

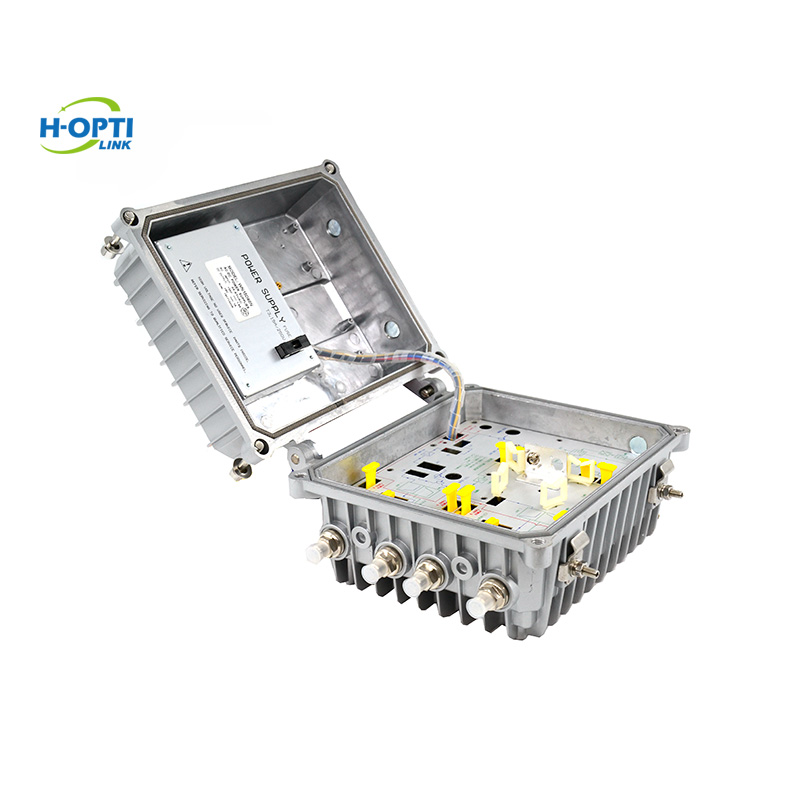

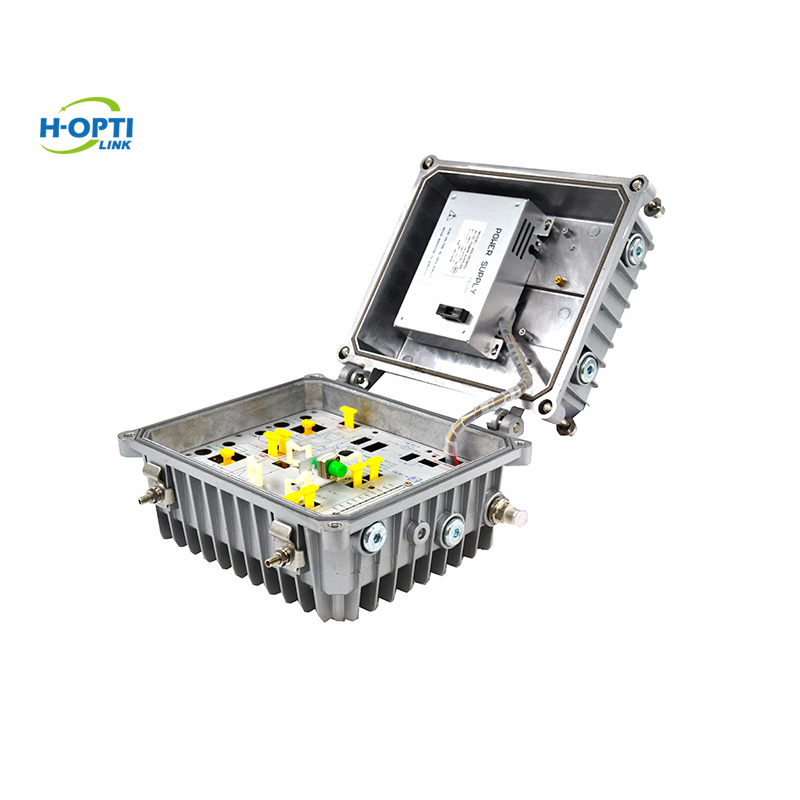

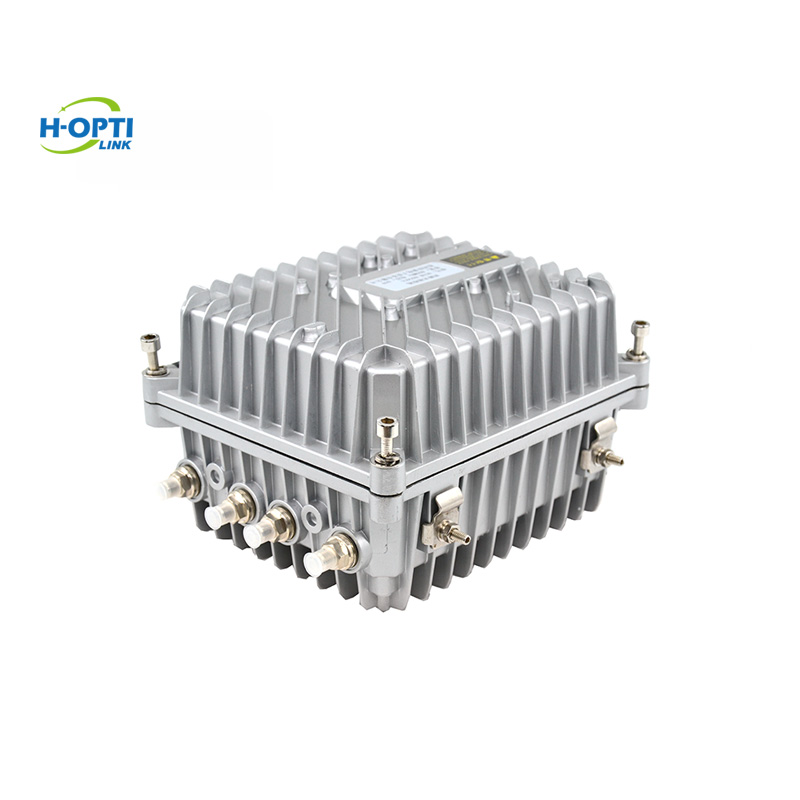

CATV 4 Way Outdoor Optical Receiver with Return Path

Short Description:

Features

1. Adopt waterproof aluminum shell and the waterproof level could reach to IP65 grade.
2. Double shield panel that can ensure the excellent EMC index.
3. Advanced GaAs low noise amplified circuit increases rhe receiving sensitivity.
4. AGC control range +2~-7dBm, output level unchanged.
5. CTB, CSO basically unchanged.
6. Ten pieced luminescent can show more accurate optical power.
7. The taps and splitters can be exchanged.
8. AC-60v has independent power supply port.
9. With internal button fuse box, convenient and quick to change.
10. Adopt anti surge lighting circuit that can test without opening the housing.
11. International general SNMP.


Product Detail

Product Tags

Product Informations

Product Name: Outdoor optical receiver Material: cast aluminium
Receiving Wavelength: 1100-1600nm Receiving optical power: -7~2db
Usage: CATV network Connector: SC APC/FC APC
Output port: 4 Origin: Hangzhou,China

CATV 4 Way Outdoor Optical Receiver with Return Path

Place of Origin China
Brand name H-opti link
Warranty 1 year

Payment & Shipping

Minimum Order Quantity 1
Packaging Details normal export packaging
Supply Ability 50000pcs

Description

HCOR-8604CG, 4 Way Output With Return Path CATV  Outdoor Optical Node Receiver is our new designed for CATV network.  It is mainly used in the building, community or village with concentrated users and high level multi outputs distribution network. Also suitable to be used in the place where it is not convenient to take the electricity and single equipment drives many users. It can work together with ONU or EOC to realize the network convergence.

11 22 44 55



Sepcifications

Performance Unit Technical Data
Optical receiving wavelength nm 1100-1600
Receiving optical power dB -7~+2
Frequency range Mhz 45~860
Nominal gain dB 30
Nominal output level dBuV ≥106
Flatness dB ±1
Reflection loss dB ≥45
Noise coefficient dB ≤10
Gain adjustable range dB 0-20
Output port number 4
Output impedance Ω 75
AGC dB ±3/±0.3
CTB dB ≥65
CSO dB ≥60
C/N dB ≥51
SNMP RJ45
Power voltage V 220VAC or -48VDC
Operating Temperature -40~60
Size mm 240*220*150
