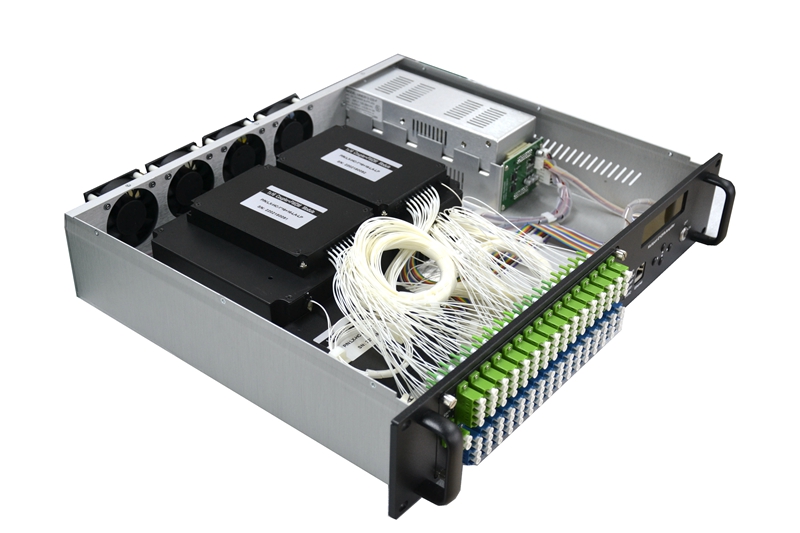

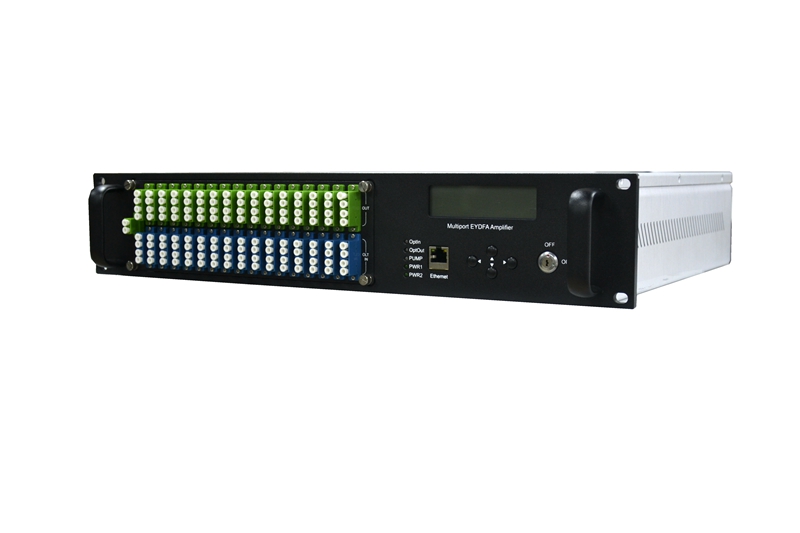

1550nm Pon EDFA With Dual Input

Short Description:

Features

  • Operating bandwidth: 1540~1563nm
  • Total output power: 27~40dBm
  • Low noise figure ≤ 6dB,
  • 8~64 output ports, used with OLT
  • 8~64 input optical ports, multiplexing the WDM 1310/1490nm
  • Output power can be adjusted
  • Compatible with any FTTx PON technology: EPON/GEPON, XPON
  • MER (Modulation Error Ratio) above 40dB
  • CNR (Carrier-to-Noise Ratio) above 50dB



  • Lead-free Circuit board
  • Pump current not exceeding 4000mA
  • Password protection
  • Adjustable output power
  • Custom logo for SNMP websiteOptional dual optical input, with a built-in 2 × 1 optical switch


Product Detail

Product Tags

Product Informations

Product Name:1550nm PON EDFAMaterial:Alloy
Wavelength:1550nm±10nmOutput power:27-41db
Usage:CATV networkConnector:SC APC/FC APC;LC/APC
Output port:4/8/16/32/64 portsOrigin:Hangzhou,China

1550nm Pon EDFA With Dual Input

Place of Origin China
Brand name H-opti link
Warranty 3 year

Payment & Shipping

MOQ:1PCS
Packaging Details normal export packaging
Supply Ability 50000pcs

Description

High Power EDFA is characterized by low noise and high linearity performance to meet the most demanding requirements of CATV and FTTx applications. It offers a flexible and low-cost solution for CATV large area coverage of large and medium-sized cities, mainly used in FTTH, FTTB, DBS, MMDS, FTTX pon

The device has a built-in CWDM wavelength division multiplexer, which will enable the 1490 / 1310nm data stream of the OLT and ONU to be combined into a single fiber transmission through EDFA, thereby reducing the number of devices and improving the system index and reliability. Provides a flexible and low-cost solution for triple play and fiber-to-use

Sepcifications

PerformanceTechnical Data
CATV working wavelength1540~1563nm
OLT wavelength1310~1490nm
Number of OLT in8 /16/32/64ports  Optional
Number of output port8 /16/32/64ports  Optional
Output power of each port13~23dBm
Total output power33-40dBm
CATV input optical power-10~+10dBm   (Optional≥+3~+10)
Output power adjustment range-10~0dBm
Difference of each output powe-0.5~+0.5dBm
Noise figure (pin=0dBm)4.5~5.0dB
Polarization dependence loss0.3dB
 Polarization dependence gain0.4dB
 Polarization mode dispersion0.3ps
Pump leakage power-30dBm
 Connector typeFC/APC  Optional( SC/APC   LC/APC)
SNMPRJ45
Supply voltage90~265V(220VAC)
30~72V(-48VDC)
 Warranty3 years
Power consumption≤80W
Operating Temperature-5~65℃
Storage temperature-40~80℃
 Size19*14.7*3.5″  (2U)
Packing size60*56*24cm
