High Power EDFA 2U

  • 1550nm Pon EDFA With Dual Input

    1550nm Pon EDFA With Dual Input

    Features

    • Operating bandwidth: 1540~1563nm
    • Total output power: 27~40dBm
    • Low noise figure ≤ 6dB,
    • 8~64 output ports, used with OLT
    • 8~64 input optical ports, multiplexing the WDM 1310/1490nm
    • Output power can be adjusted
    • Compatible with any FTTx PON technology: EPON/GEPON, XPON
    • MER (Modulation Error Ratio) above 40dB
    • CNR (Carrier-to-Noise Ratio) above 50dB



    • Lead-free Circuit board
    • Pump current not exceeding 4000mA
    • Password protection
    • Adjustable output power
    • Custom logo for SNMP websiteOptional dual optical input, with a built-in 2 × 1 optical switch

  • 1550nm High Power EDFA with WDM

    1550nm High Power EDFA with WDM

    Features

    1540~1563nm operating bandwidth
    Total output power 27~40dBm
    Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )
    8~64 output ports, which used in OLT
    8~64 input optical ports, multiplex the WDM 1310/1490nm
    Output power can be adjusted
    Optional dual optical input, built-in 2 × 1 optical switch
    Credit-time function
    Can compatible with any FTTx PON technology: EPON/GEPON,XPON, Comprehensive SNMP management, and can by phone with IPV6 network.
    Efficient space, simple and reliable in construction/maintenance
    Remote management via SNMP and WEB Management


  • 1550nm EYDFA High Power Multi-Way Optical Amplifier

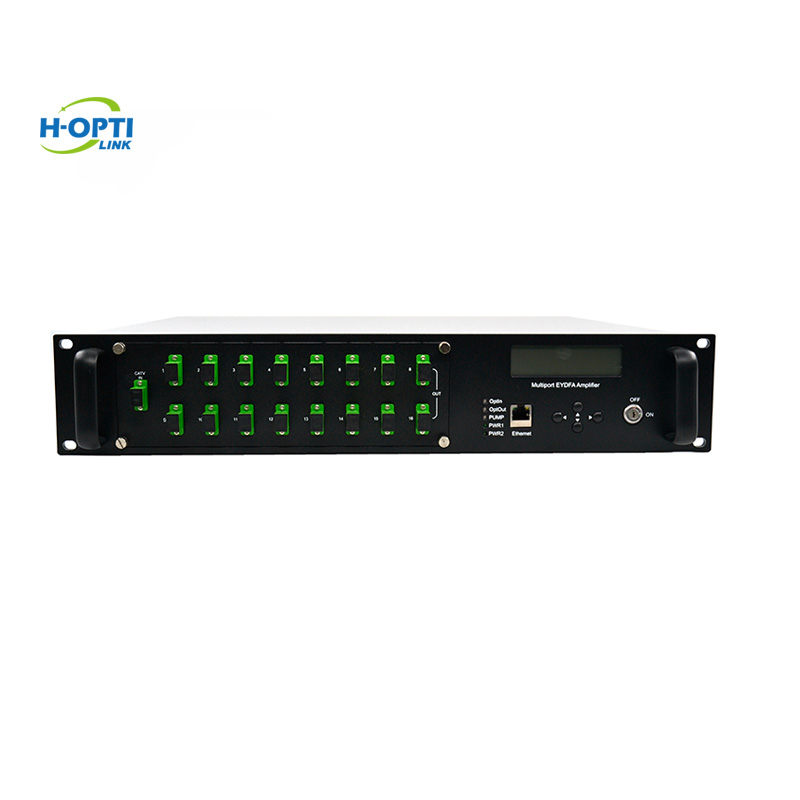

    1550nm EYDFA High Power Multi-Way Optical Amplifier

    Features

    -10~+10dBm Optical Input Power Range
    1540~1563nm operating bandwidth
    Total output power 27~40dBm
    Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )
    Output power can be adjusted
    Optional dual optical input, built-in 2 × 1 optical switch
    Credit-time function
    Comprehensive SNMP management, and can by phone with IPV6 network.
    Efficient space, simple and reliable in construction/maintenance
    Remote management via SNMP and WEB Management
