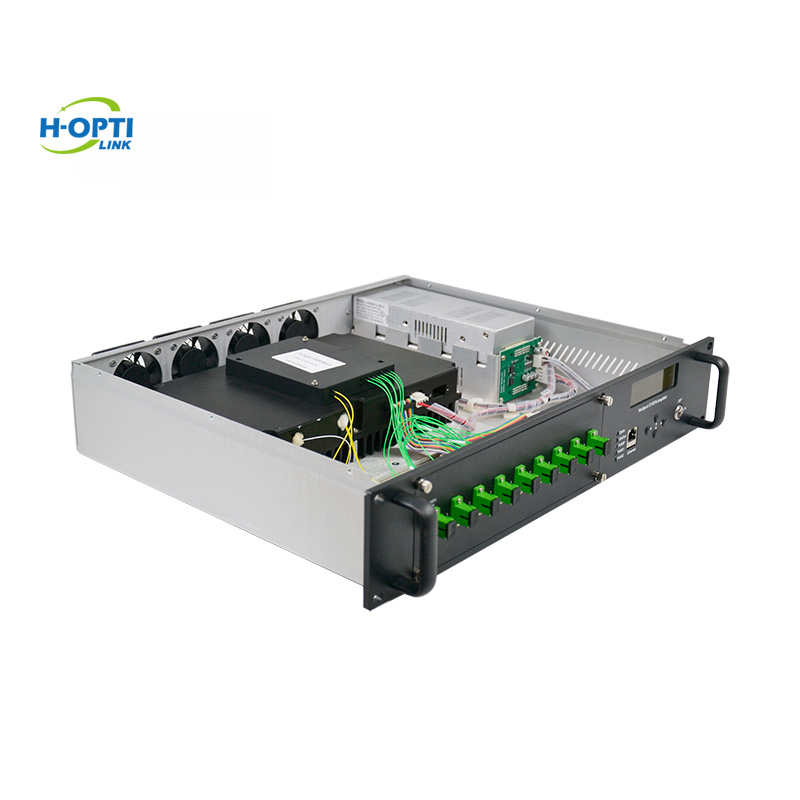

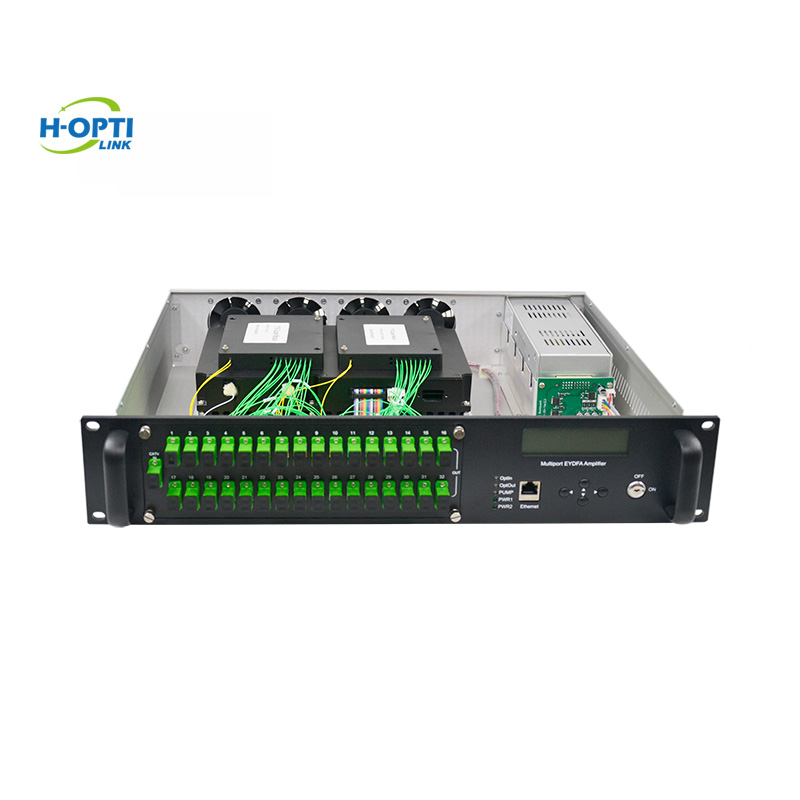

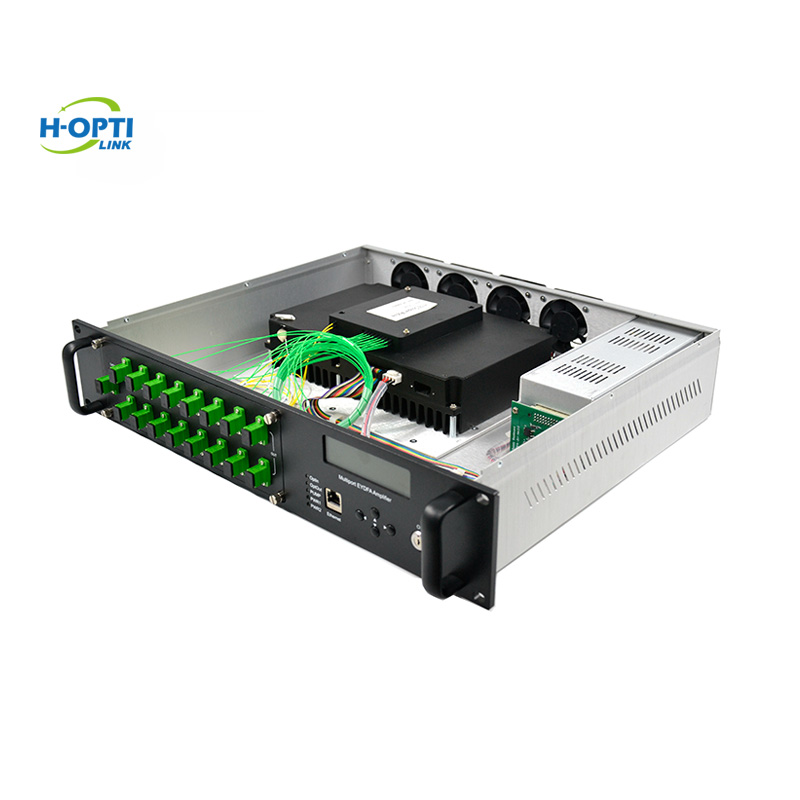

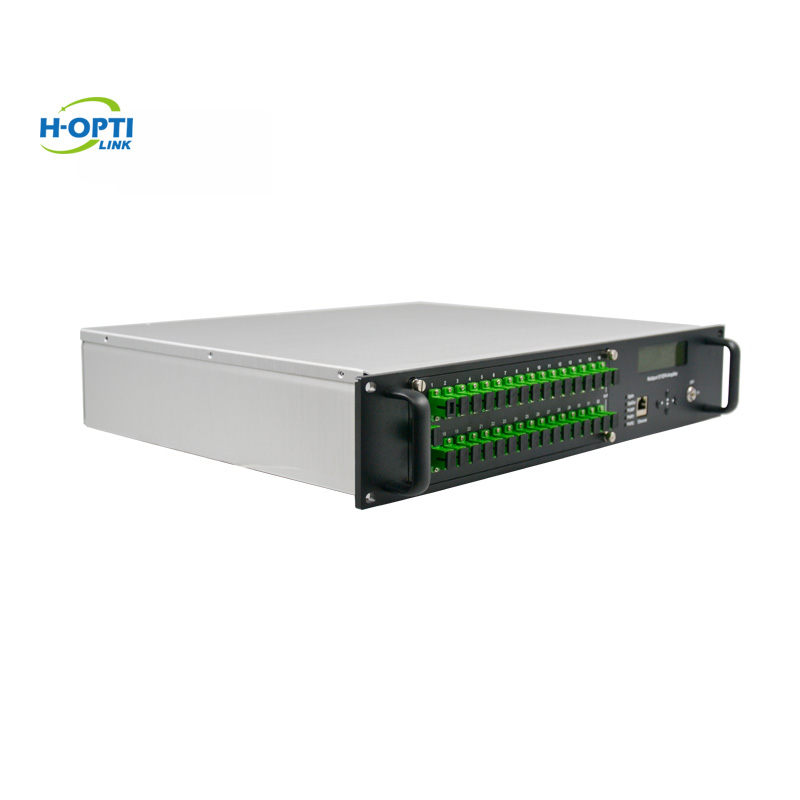

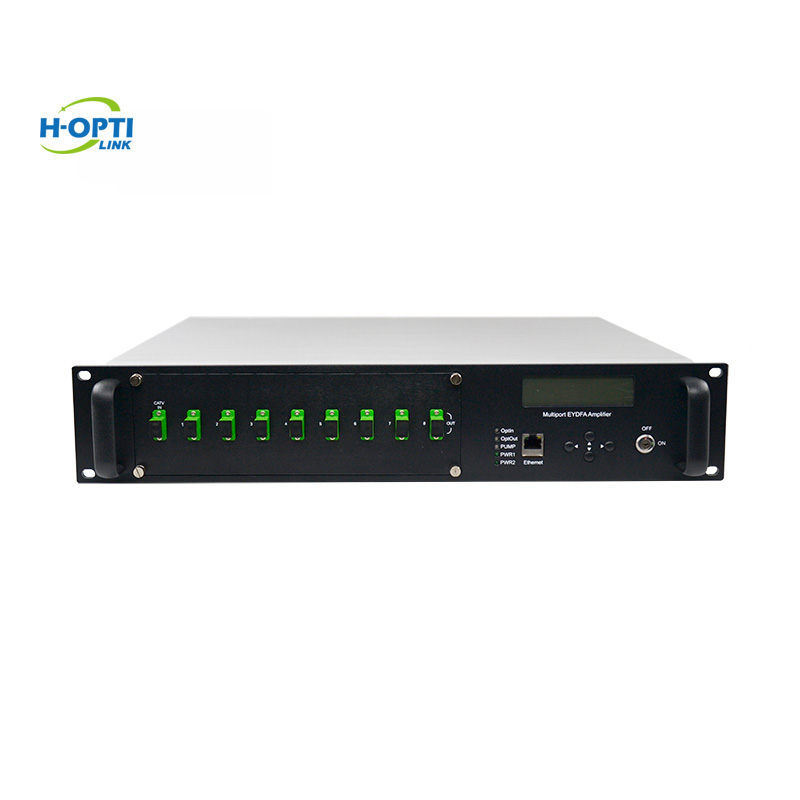

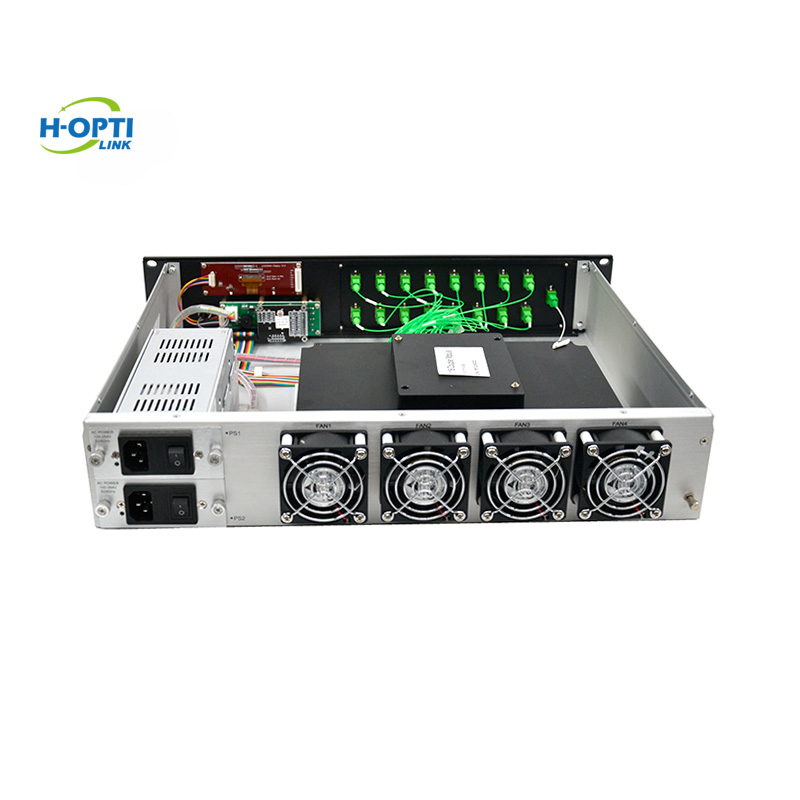

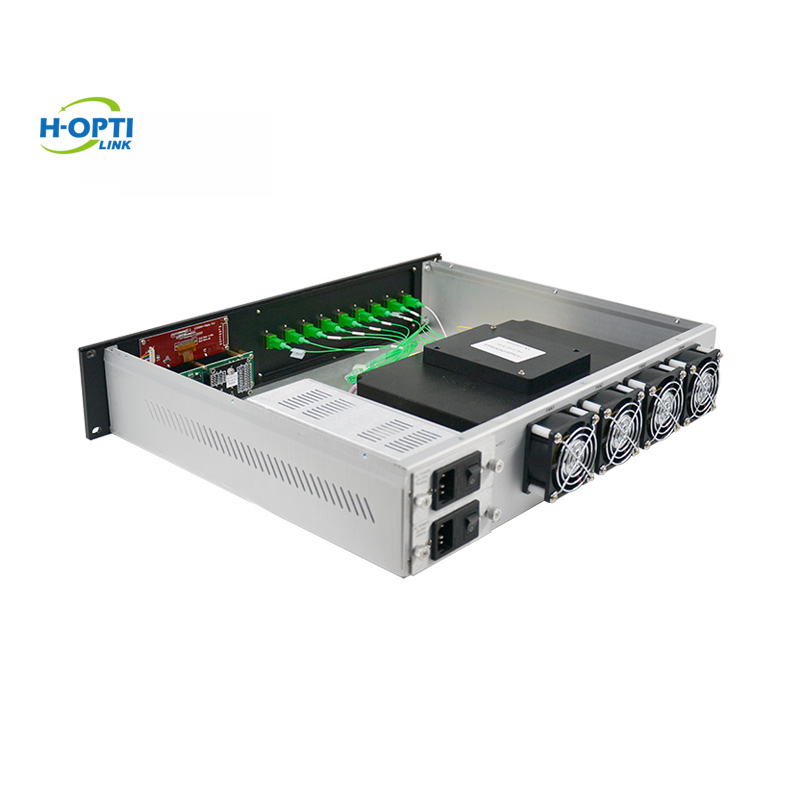

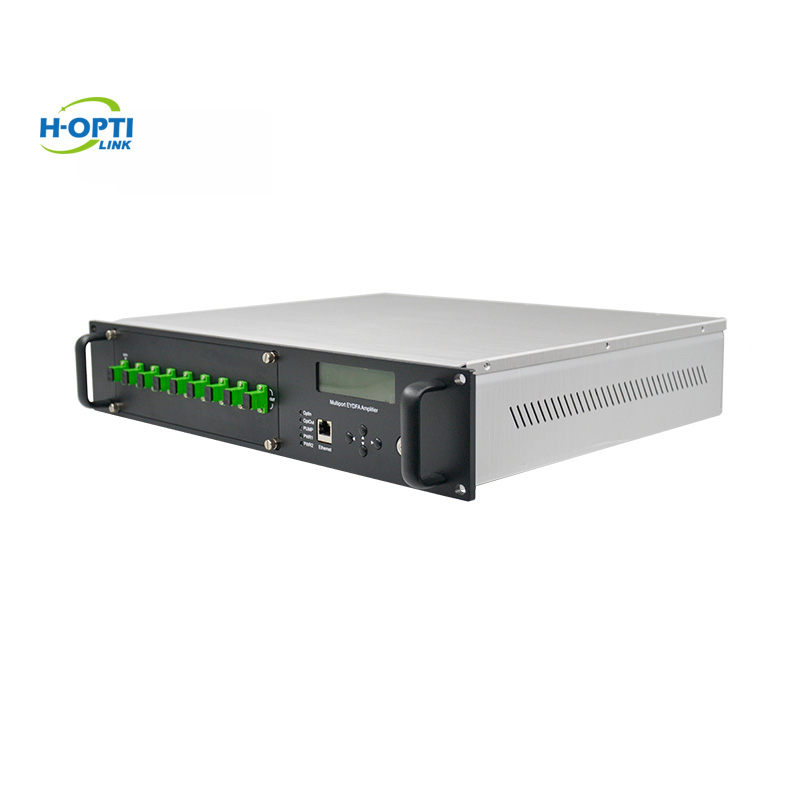

1550nm EYDFA High Power Multi-Way Optical Amplifier

Short Description:

Features

-10~+10dBm Optical Input Power Range
1540~1563nm operating bandwidth
Total output power 27~40dBm
Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )
Output power can be adjusted
Optional dual optical input, built-in 2 × 1 optical switch
Credit-time function
Comprehensive SNMP management, and can by phone with IPV6 network.
Efficient space, simple and reliable in construction/maintenance
Remote management via SNMP and WEB Management



Product Detail

Product Tags

Product Informations

Product Name:1550nm  EDFAMaterial:Alloy
Wavelength:1550nm±10nmOutput power:27-41db
Usage:CATV networkConnector:SC APC/FC APC
Output port:4/8/16/32/64 portsOrigin:Hangzhou,China

1550nm EYDFA High Power Multi-Way Optical Amplifier
Place of Origin China
Brand name H-opti link
Warranty 3 year

Payment & Shipping

Minimum Order Quantity 1
Packaging Details normal export packaging
Supply Ability 50000pcs

Description

CATV high power EDFA has standard series that is based on the optical power included 25~40dBm before splitter. This optical amplifier has built-in optical power splitter for providing up to 64 output ports. Standard is at 1, 2, 4, 8, 16, 32 output power port.
Our high power EDFA is characterized by low noise and high linearity performance to meet the most demanding requirements of CATV and FTTx applications. It offers a flexible, low-cost solution for large area distribution networks.

Sepcifications

PerformanceTechnical Data
CATV working wavelength1540~1563nm
OLT wavelength1310~1490nm
Number of OLT in8 /16/32/64ports  Optional
Number of output port8 /16/32/64ports  Optional
Output power of each port13~23dBm
Total output power33-40dBm
CATV input optical power-10~+10dBm   (Optional≥+3~+10)
Output power adjustment range-10~0dBm
Difference of each output powe-0.5~+0.5dBm
Noise figure (pin=0dBm)4.5~5.0dB
Polarization dependence loss0.3dB
 Polarization dependence gain0.4dB
 Polarization mode dispersion0.3ps
Pump leakage power-30dBm
 Connector typeFC/APC  Optional( SC/APC   LC/APC)
SNMPRJ45
Supply voltage90~265V(220VAC)
30~72V(-48VDC)
 Warranty3 years
Power consumption150W
Operating Temperature-5~65℃
Storage temperature-40~80℃
 Size19*14.7*3.5″  (2U)
Packing size60*56*24cm
