1550nm PON EDFA 1U 8 PORT optical amplifier WITH WDM

Short Description:

Data

Operating bandwidth: 1540~1563nm
Total output power: 27~40dBm
Low noise figure ≤ 6dB,
8 output ports, used with OLT
1/2 input optical ports, multiplexing the WDM 1310/1490nm
Output power can be adjusted
Compatible with any FTTx PON technology: EPON/GEPON, XPON
MER (Modulation Error Ratio) above 40dB
CNR (Carrier-to-Noise Ratio) above 50dB

Features

Lead-free Circuit board

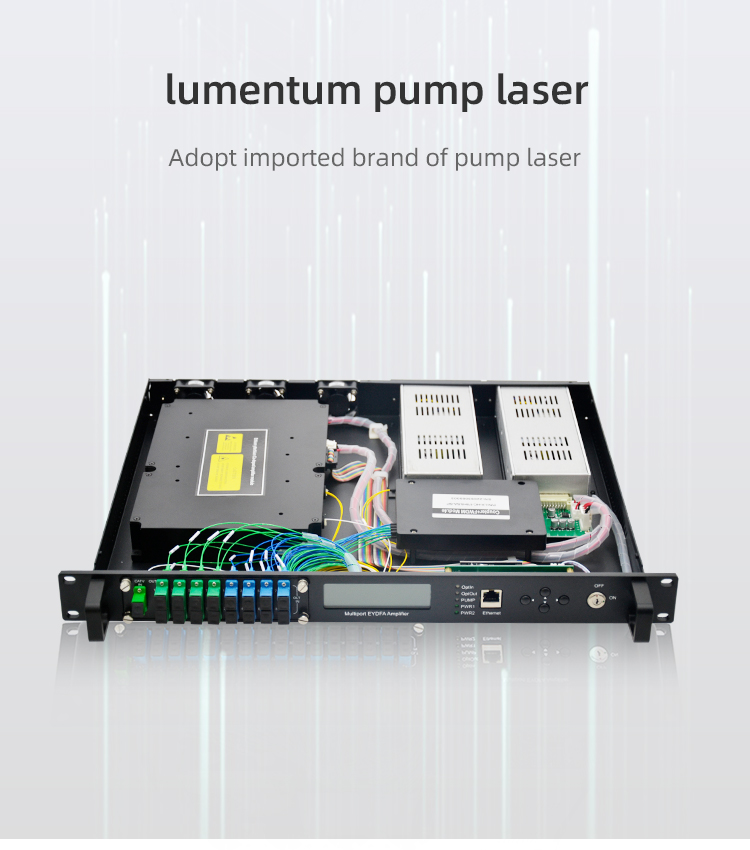

Pump current not exceeding 4000mA
1. 1. Password protection
Adjustable output power
Custom logo for SNMP websiteOptional dual optical input, with a built-in 2 × 1 optical switch

CONTACT NOW

Product Detail

Product Tags

Product Informations

Product Name:	1550nm PON EDFA	Material:	Alloy
Wavelength:	1550nm±10nm	Output power:	27-41db
Usage:	CATV network	Connector:	SC APC/FC APC;LC/APC
Output port:	4 ports	Origin:	Hangzhou,China

1550nm Pon EDFA With Dual Input

Place of Origin China
Brand name H-opti link
Warranty 3 year

Payment & Shipping

MOQ:1PCS
Packaging Details normal export packaging
Supply Ability 50000pcs

Description

High Power EDFA is characterized by low noise and high linearity performance to meet the most demanding requirements of CATV and FTTx applications. It offers a flexible and low-cost solution for CATV large area coverage of large and medium-sized cities, mainly used in FTTH, FTTB, DBS, MMDS, FTTX pon

The device has a built-in CWDM wavelength division multiplexer, which will enable the 1490 / 1310nm data stream of the OLT and ONU to be combined into a single fiber transmission through EDFA, thereby reducing the number of devices and improving the system index and reliability. Provides a flexible and low-cost solution for triple play and fiber-to-use

Sepcifications

Performance	Technical Data
CATV working wavelength	1540~1563nm
OLT wavelength	1310~1490nm
Number of OLT in	8 /16/32/64ports Optional
Number of output port	8 /16/32/64ports Optional
Output power of each port	13~23dBm
Total output power	33-40dBm
CATV input optical power	-10~+10dBm (Optional≥+3~+10)
Output power adjustment range	-10~0dBm
Difference of each output powe	-0.5~+0.5dBm
Noise figure （pin=0dBm）	4.5~5.0dB
Polarization dependence loss	0.3dB
Polarization dependence gain	0.4dB
Polarization mode dispersion	0.3ps
Pump leakage power	-30dBm
Connector type	FC/APC Optional（ SC/APC LC/APC）
SNMP	RJ45

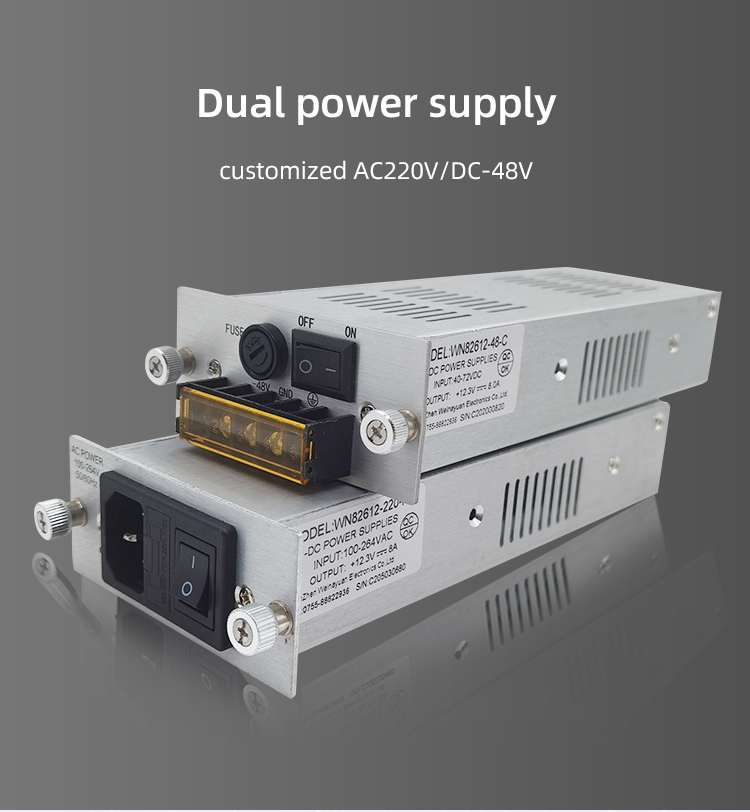

Supply voltage	90~265V（220VAC）
Supply voltage	30~72V（-48VDC）
Warranty	3 years
Power consumption	≤80W
Operating Temperature	-5~65℃
Storage temperature	-40~80℃
Size	1914.73.5″ （2U）
Packing size	605624cm
